Index > Product Center > HTRB H3TRB > BTR-E600(16 slots)

BTR-E600(16 slots)

HTRB Burn-in System--Standard type

The BTR E600 series burn-in system is designed to perform HTRB,HTGB & HTIR burn-in for Semiconductor Discrete Device including diode,transistor, FET,IGBT module and SCR in various packages.

Test Standard

Product Features

Max Test Temp.

Chamber & BIB: 150℃ / 175℃ / 200℃ are optional
Failure Device Data fetch

Auto-identify failed DUT and fetch last 50-100 data in 10s interval for failure analysis.
Auto-loading Parameter

Auto-apply Temp. Voltage and other parm. to the DUT according to the software setting.
Real time monitoring

Real-time monitoring of all DUTS' test parameter&over limit status.

Product Parameters

Chamber: Brand

GWS / ESPEC PH-201; Dimension

600*600*600(mm); Air circulating

Horizontal air circulating design; Temperature

150/175/200℃; Temp. uniformity

150℃±3℃(null load); Fluctuation:±0.5℃

Capacity: Zone QTY.

4-8; Slot

16; DUT per slot/ Total

80/1280

Power Supply: QTY.

4-8sets(1 PSU:1 zone); Output

Max 1200V

Driver Board: QTY.

16pcs; Voltage detection range

0.0V~1200.0V;Resolution:0.1V;Accuracy:±(1%+1LSB); Leakage current detection range

0.0uA~50.0mA;Resolution:0.1uA;Accuracy:±(1%+1LSB)

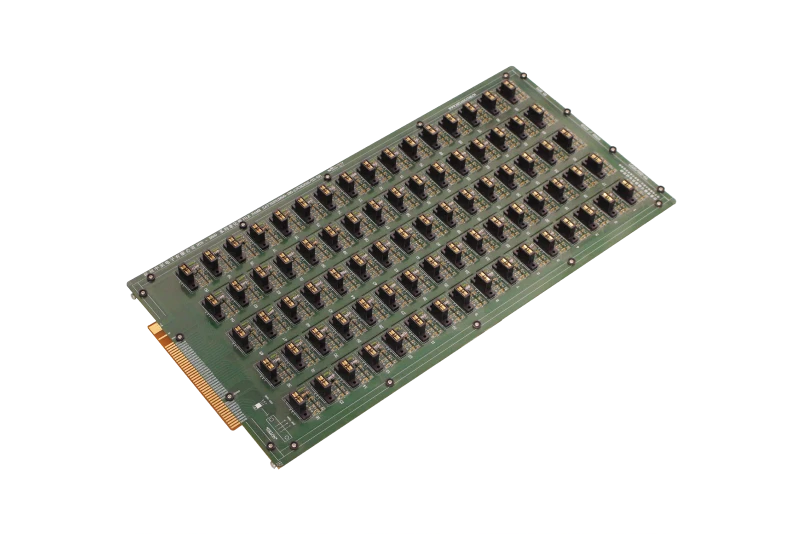

Burn-in Board: Substrate material

High Tg substrate; Temp. up to

150/175/200℃ option; Dimension

290*600(mm)

Equipment: Dimension

1430W*1400D*2000H(mm); Electrical requirement

A.C.220V±10%/50Hz; Power/Weight

8KW/600KG
